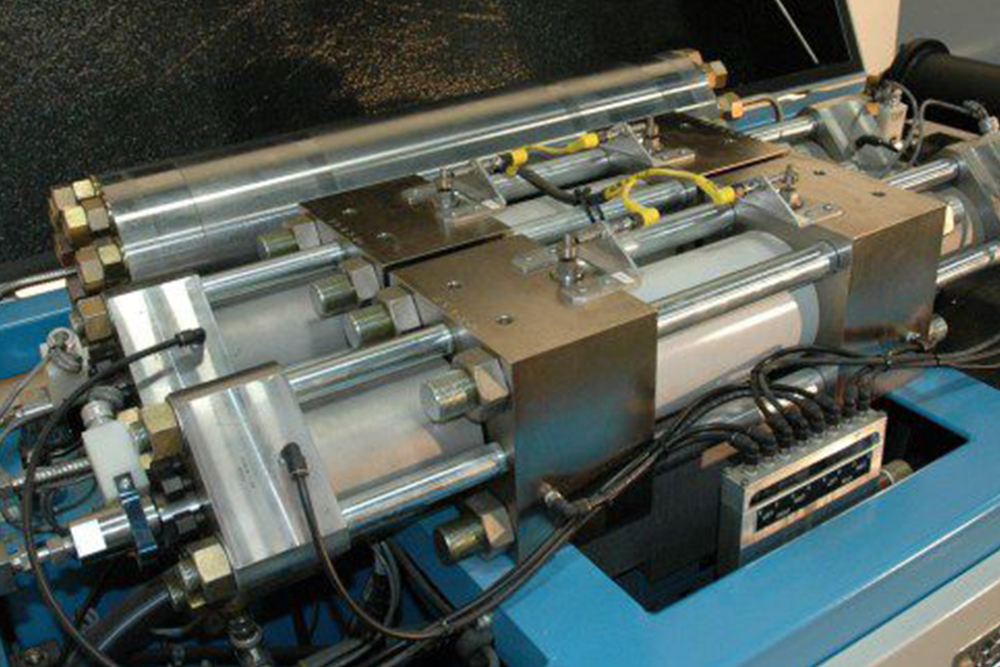

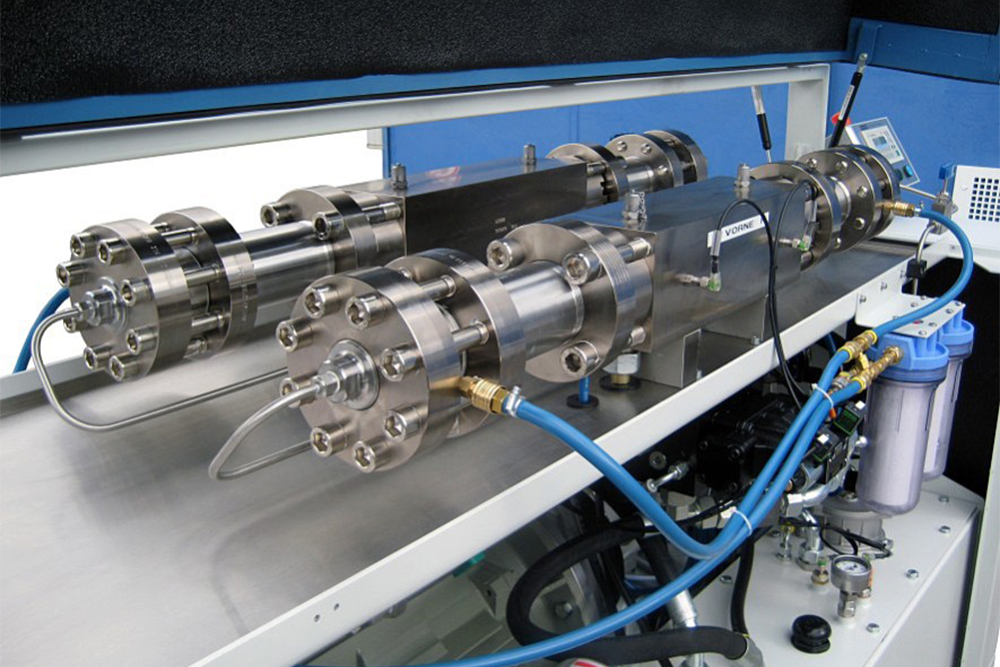

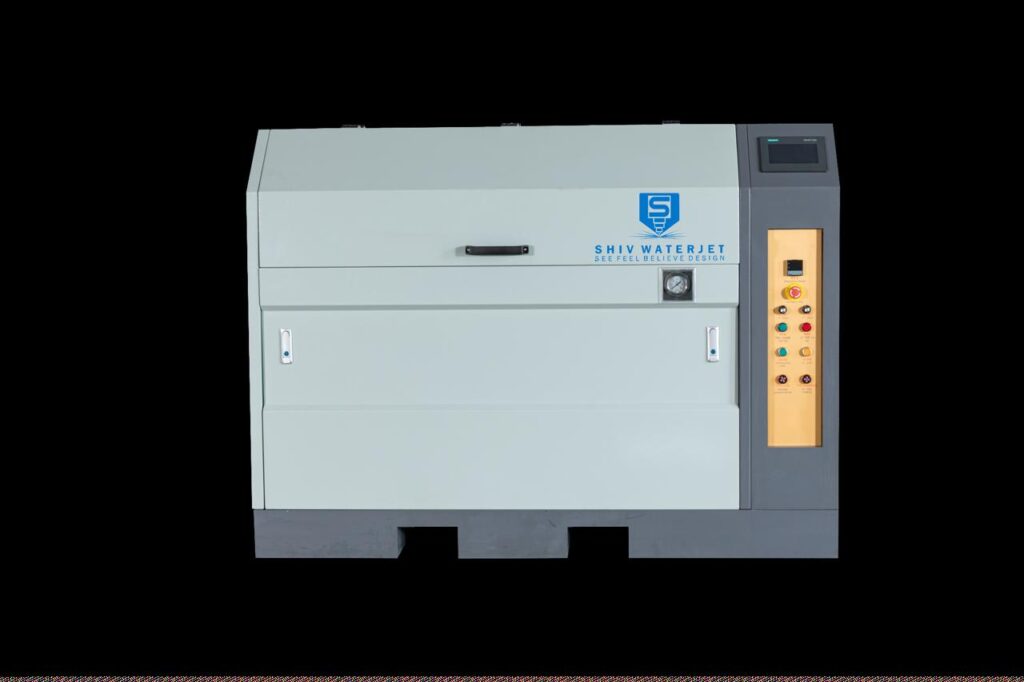

Ultra High Pressure Pump

Water jet machines generate very high-speed Jets which can cut thick material with good accuracy and a good finishing surface. The water jet Cutting Machine Cuts anything with no heat-affected zone. Water jet is widely used as Metal Cutting Machines, Glass Cutting Machines, Marble Cutting Machine, Ceramic Tile Cutting Machine, and Granite Cutting Machines.

The water jet Cutting Machine comprises of CNC Cutting Table and Ultra High Pressure Pump. The water jet machine uses cold supersonic abrasive erosion to cut almost any material both metals and nonmetals. The highly pressurized water stream is forced through a tiny area that carries an abrasive garnet to erode the material.

Motor Horsepower50HP
Power SourceHydraulic
Discharge Pressure3.7L per/Min
SeriesMax. Pressure (bar/psi)Power (kw/HP)Max. Flow Rate(L/min)L x W x H (m)
NeoLine2800/55,00030/403.11.1*1.4*1.0
lettine .1L-1 502800/55,00037/503.81.7*0.9*1.2
SL-V-30 Classic2800/55,00022/302.31.7*0.9*1.2
SL-V-50 Classic2000/55,00037/503.81.7*0.9*1.2
SL-V-305 Pius4136/60,00022/302.11.7*0.9*1.5
SL-V-505 Pks4136/60,00037/503.61.7*0.9*1.5
SL-V-605 Pius4136/60,00045/604.21.7*0.9*1.5
SL-V-755 Pius4136/60,00056/755.41.7*0.9*1.5
SL V-100S Plus4136/60,00075/1007.21.7*0.9*1.5
SL-V-1500 Pius1136/60,000112/1509.12.3*1.7*1.7
SL-V-2000 Pius1136/60,000149/200142.3*1.7*1.7
PRO-2 60S
6200/90,000
45/60
2.71.7*0.9*1.5
PPO-2 125D6200/90,00093/1255.82.4*0.9*1.5
